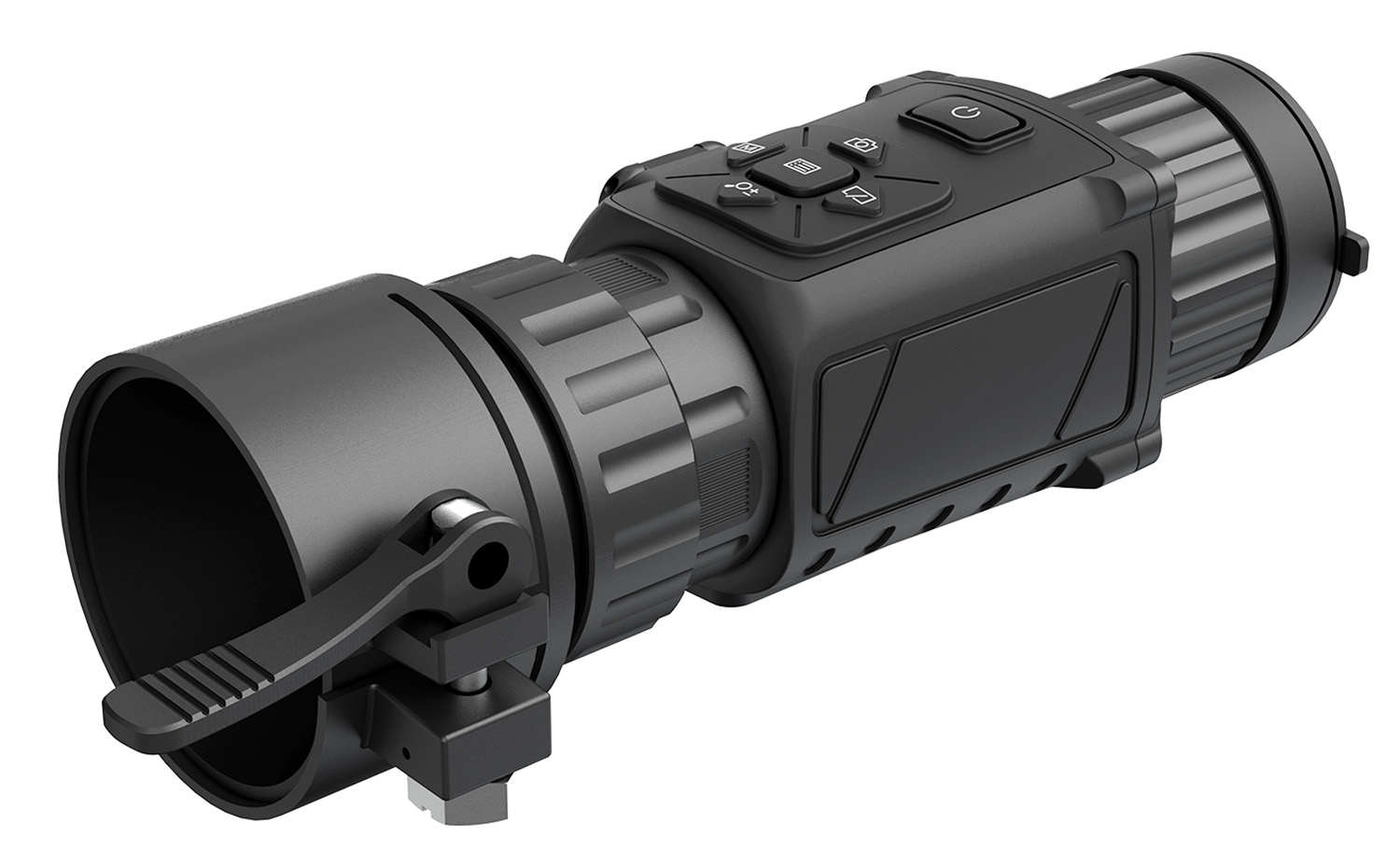

AGM Rattler TC35-384 Thermal Monocular 35mm 384×288

The AGM Rattler TC35-384 is a compact thermal clip-on designed to convert daytime optics into a thermal imaging system without tools. It pairs a 384×288 thermal detector with a 748×561 OLED monitor to deliver clear imagery in low-light and obscured conditions. The unit mounts in front of rifle scopes up to 8x magnification for medium-range observation and includes onboard Wi‑Fi for live streaming and recording.

Key Specifications

• The objective lens measures 35mm.
• The thermal detector resolution is 384×288.
• The built-in display is a 748×561 OLED monitor.
• The optical magnification is 1x.
• The unit provides digital zoom at 2x/4x/8x.
• The field of view is 10 x 8 Degrees.
• The stated focus range reaches 1235 Meters.
• Battery performance is approximately 4.5 hrs using CR123A cells.
• The weight is 0.93 lbs.
• The overall dimensions are 6.03″ x 2.46″ x 2.33″.

Configured as a quick-attach clip-on, the Rattler TC35-384 is suited to field work where rapid conversion of day optics to thermal detection is required. Its compact footprint, integrated recording and Wi‑Fi capability, and multiple digital zoom settings make it a practical choice for medium-range observation and wildlife or property surveillance. The design emphasizes straightforward controls and portability for reliable performance in diverse environmental conditions.
