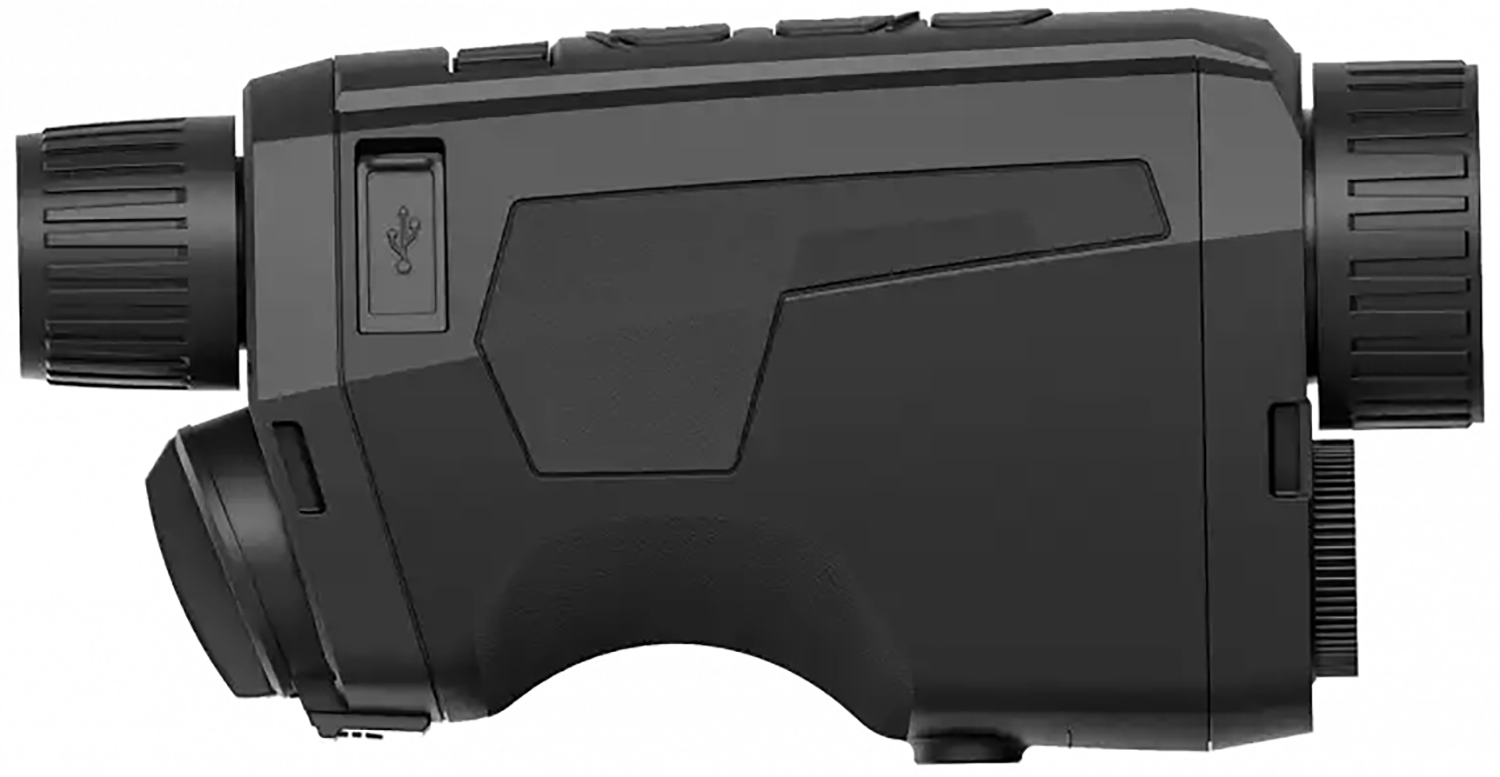

AGM Fuzion LRF TM35-384 3.5-28x 35mm Thermal Monocular

The AGM Fuzion LRF TM35-384 is a handheld bi-spectrum thermal and optical monocular designed for observation and situational awareness. It combines a high-sensitivity thermal detector with an ultra-low-light optical sensor and a 1024×768 OLED display for clear viewing through the eyepiece. The unit supports thermal, visible light, and fusion image modes and includes an integrated laser rangefinder for distance measurement.

Key Specifications

• The magnification range is 3.5–28x for adaptable observation distances.
• The objective lens measures 35mm to support light gathering and image formation.
• The thermal detector resolution is 384×288 with a refresh rate of 50Hz.
• The display is a 1024×768 OLED for clear imagery at the eyepiece.
• Digital zoom includes 1x, 2x, 4x, and 8x settings for target refinement.
• The integrated laser rangefinder has a focus range up to 1653 meters.
• The field of view measures 7.50 x 5.70 degrees.
• Battery runtime is approximately 5 hrs using a single 18650 Li-ion rechargeable cell.
• The unit weighs approximately 1.15 lbs.
• Physical dimensions are 6.60″ x 3.40″ x 2.90″.

Engineered for demanding conditions, the Fuzion LRF offers an ergonomic control layout, waterproof construction, and the choice of thermal, visible, or fused imaging to match environmental demands. Its integrated rangefinder and long battery runtime make it practical for extended fieldwork, surveillance, and rescue or patrol operations where reliable detection and distance data are required. The combination of a high-sensitivity thermal sensor and a high-resolution OLED display delivers a balanced tool for professionals and serious users who need dependable, clear observation in varied conditions.
