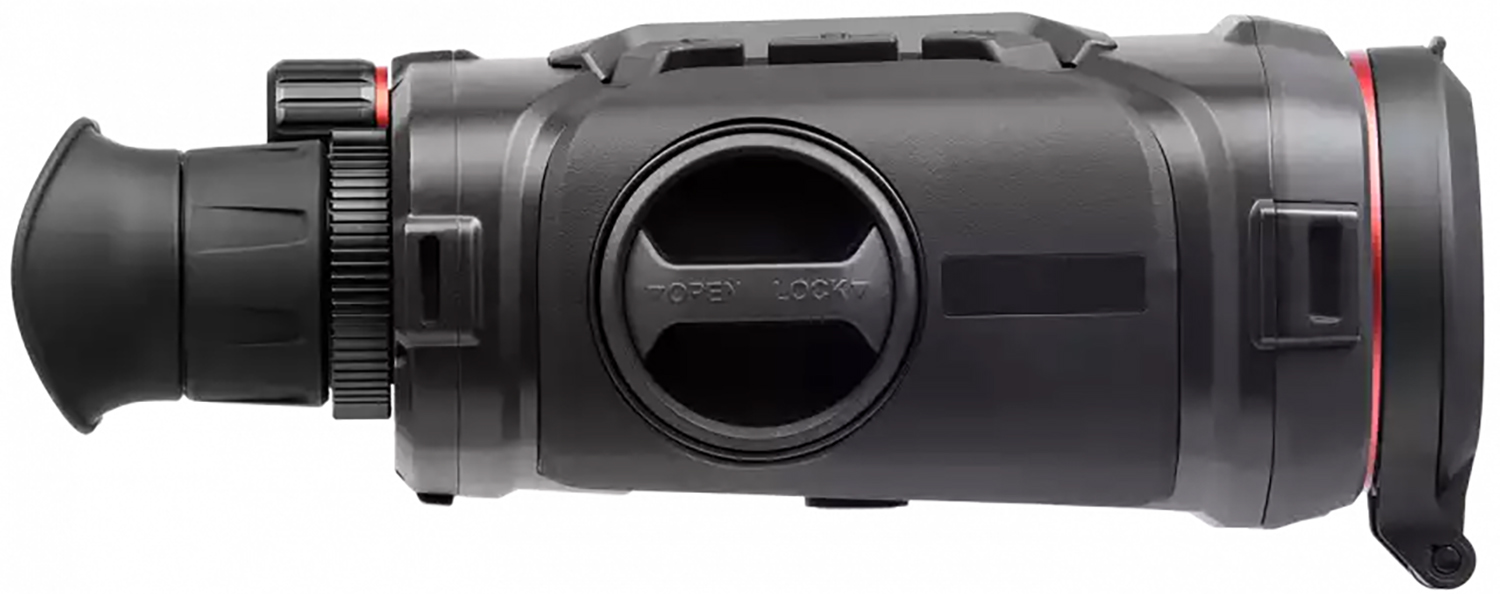

AGM Global Vision Voyage TB50-384 Thermal Binocular 5.5x-88x

The AGM Voyage TB50-384 is a dual-spectrum thermal and optical fusion binocular with an integrated laser rangefinder and navigation sensors. It combines a 50mm objective with a wide 5.5x–88x magnification range and a 384×288 thermal sensor running at 50Hz for extended observation in low-visibility environments. The unit is designed for professional field use including patrol, search and rescue, and general observation tasks where reliable detection and situational awareness are required.

Key Specifications

• The magnification range is 5.5x–88x for versatile observation at varied distances.
• The objective lens measures 50mm to collect visible and thermal imagery.
• The thermal sensor resolution is 384×288 operating at 50Hz.
• The focus range reaches up to 2600 Meters.
• The field of view is 5.30 x 4 Degrees.
• The diopter adjustment range is -5/+3 for eyepiece tuning.
• The unit runs on 18650 Li-ion rechargeable batteries.
• The listed battery life is Up to 8 hrs under typical use.
• The infrared illuminator operates at 905nm to assist low-light detection.
• The recorded weight is 2.50 lbs for consideration in field carry setups.

The Voyage TB50-384 pairs multi-spectrum imaging with navigation aids such as GPS, an electronic compass, and an inclinometer, plus a user-focused interface and ergonomic controls. Included accessories cover common deployment needs—batteries, charging kit, straps and a carrying case—so the system is ready for extended field use. Its fusion imaging modes (thermal, visible, fusion) and multi-zoom options make it a practical choice for professional operators and serious observers who need dependable detection and situational awareness without unnecessary complexity.
