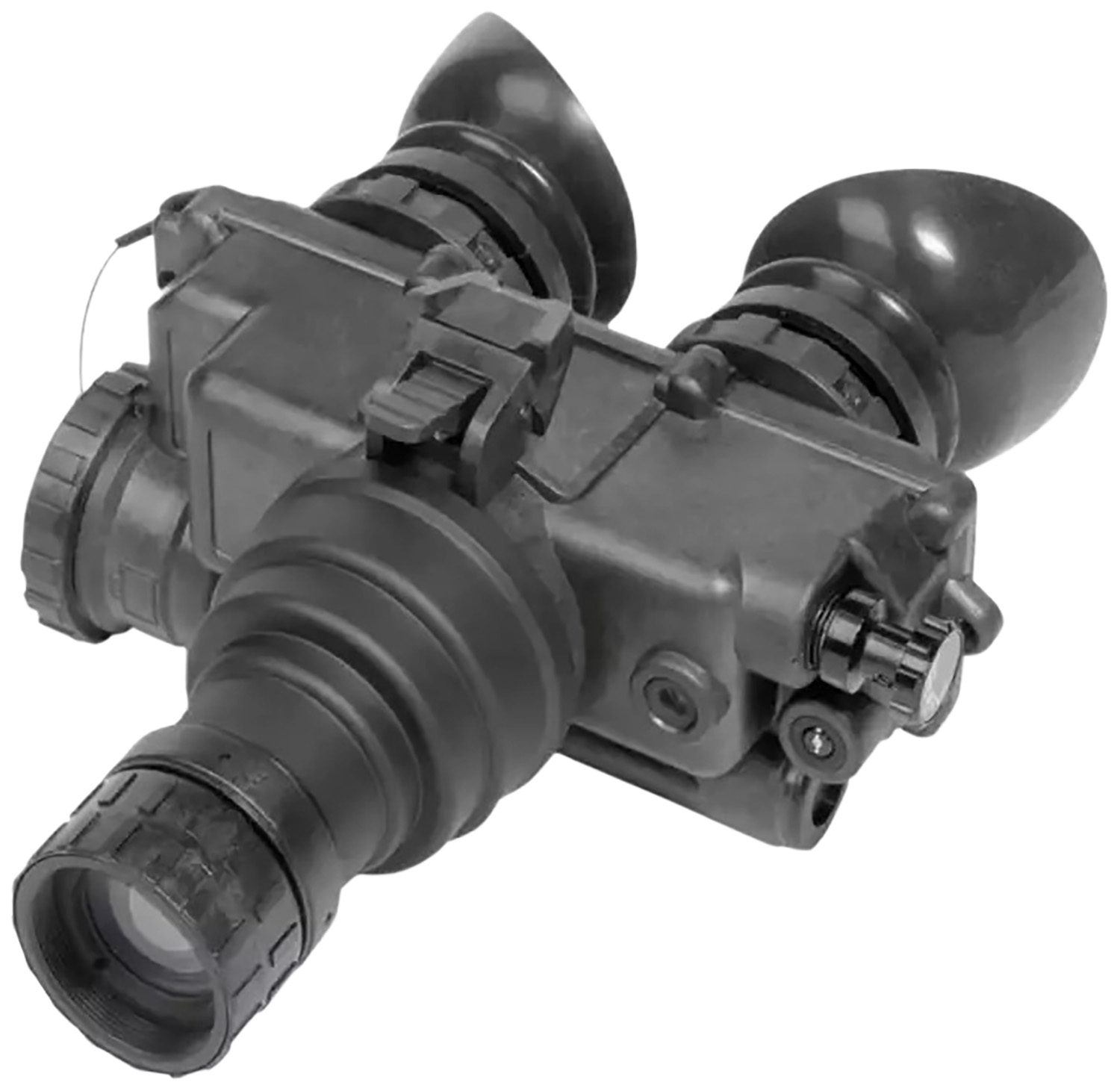

The PVS-7 3AW1 from AGM Global Vision is a head- or hand-mounted night vision system designed for general-purpose observation and low-light operations. It integrates a Generation 3 white phosphor image intensifier tube and an automatic brightness control system to maintain usable image definition in varied lighting conditions. A built-in infrared illuminator enables operation in complete darkness without visible light sources.
Key Specifications
- The field of view is 40 Degrees for situational awareness.
- The image intensifier generation is 3 White Phosphor Level 1.
- An infrared illuminator is included: Yes.
- The optical magnification is 1x for natural viewing.
- The objective lens measures 27mm.
- The image resolution is 64-72 Ip/mm.
- The unit weight is 1.50 lbs.
- The power source uses AA batteries.
- Diopter adjustment range is -6/+2.
- Typical battery life is 60 hrs under standard operating conditions.

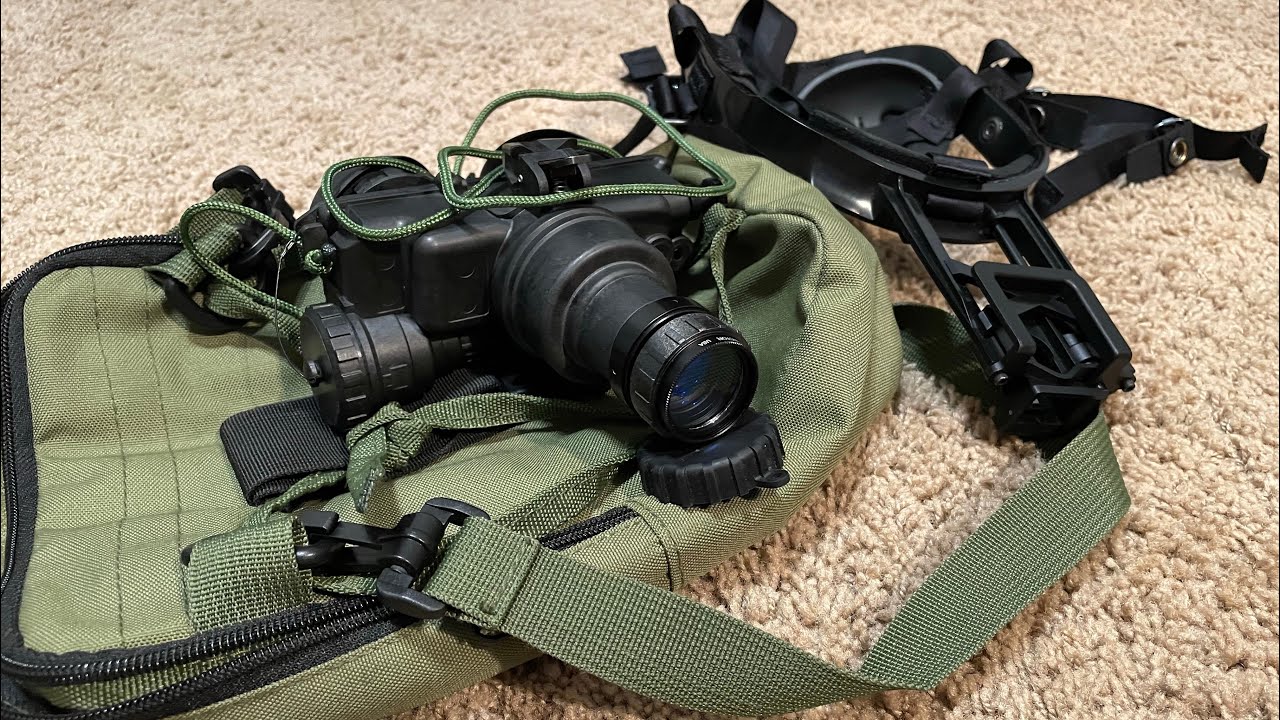

Included accessories cover common deployment needs and storage: head mount assembly, medium and thick brow pads, eye cups, soft carrying case, daylight filter, shoulder strap, lens paper, sacrificial window, demist shields, and an operator’s manual. The PVS-7 also incorporates bright-light cut-off protection and flip-up shut-off compatibility for helmet mounting, allowing flexible use across civilian and professional low-light applications.
