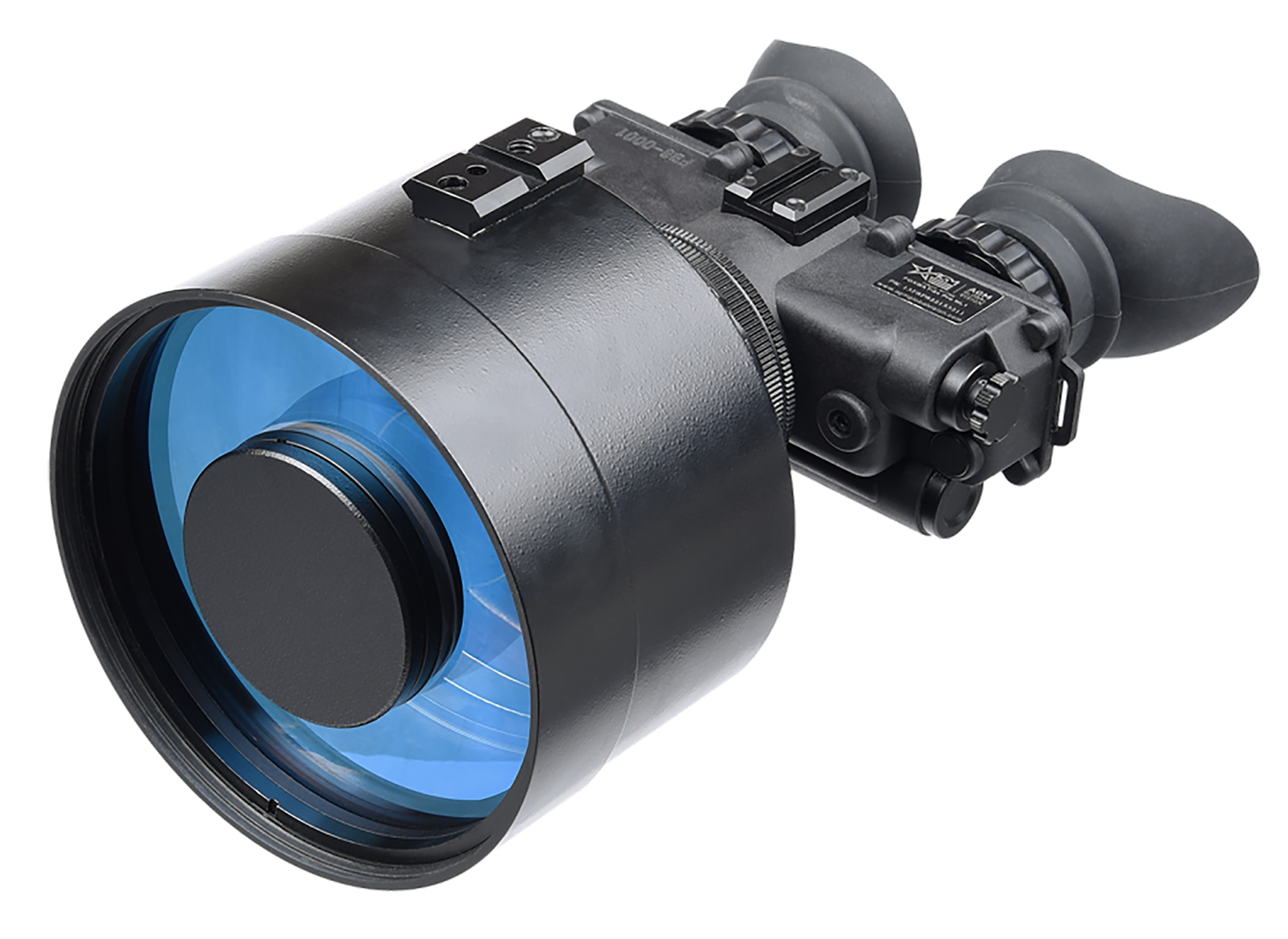

AGM Global Vision FoxBat-8 NW1 Night Vision Bi-ocular — 8x

The AGM FoxBat-8 NW1 is a magnified night vision bi-ocular built around a Gen 2+ white phosphor image intensifier tube for extended long-range observation. It combines a compact catadioptric objective, a single high-quality intensifier tube with an image beam splitter, and dual eyepieces to support long-duration viewing sessions. The unit accepts two AA batteries and typically operates up to 40 hours on a single battery load, and it offers a tripod mounting option to reduce user fatigue during extended use.

Key Specifications

• The magnification is 8x for detailed long-range observation.
• The intensifier tube is Gen 2+ White Phosphor Level 1 for high-performance image intensification.
• The resolution is rated at 51-64 lp/mm to convey image detail capability.
• The field of view measures 4.50 Degrees to define the visible scene area.
• The focus range covers 10m to Infinity for flexible target distances.
• Battery power is provided by AA cells with an operating time of Up to 40 hrs on a single load.
• The device includes a Detachable infrared illuminator to assist in low-light conditions.
• The diopter adjustment range is -5/+5 to accommodate user visual correction.
• The unit weighs approximately 3.90 lbs for transport and mounting considerations.
• The system features a high-light shut-off protection for the image intensifier tube (as part of its electronics).

Configured for sustained observation tasks, the FoxBat-8 NW1 is supplied with a detachable IR illuminator, tripod, lens cloth, hard case, and user manual to support deployment and care. Its optical and electronic features suit applications such as perimeter monitoring, wildlife observation, search operations, and professional surveillance where magnified, high-contrast night imaging is required. The combination of an advanced Gen 2+ tube, long battery life, and tripod compatibility makes this unit a practical choice for extended nighttime observation sessions.
