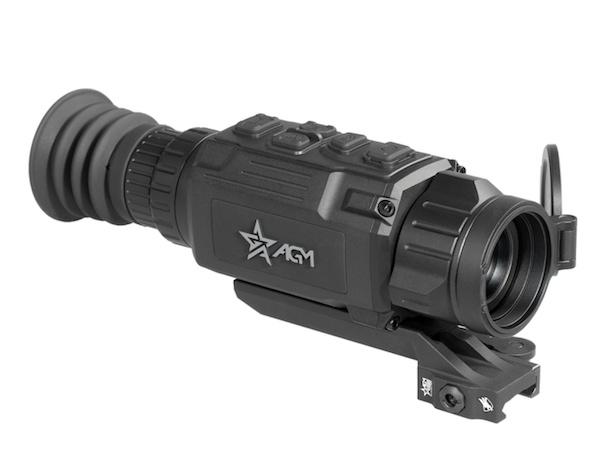

AGM RattlerV3 LRF 35-640 Thermal Rifle Scope

The AGM RattlerV3 LRF 35-640 is a compact thermal optic that pairs a 35 mm germanium objective with a 640×512 thermal sensor and a high-resolution 2560×2560 OLED display. It offers a 2.5–20× magnification range and an integrated in-lens laser rangefinder for on-the-spot distance data. Firmware features include onboard ballistic calculation, multiple color palettes, picture-in-picture, Wi‑Fi hotspot, and onboard video/audio recording for documentation and review.

Key Specifications

• The objective measures 35 mm for clear thermal imaging.
• The thermal sensor resolution is 640×512 and operates at 50 Hz.
• The eyepiece features a 2560×2560 OLED display for detailed target presentation.
• The magnification range is 2.5–20× for versatile close- to longer-range observation.
• A built-in laser rangefinder provides ranging to 1000 m.
• Onboard storage capacity is 64 GB for recorded video and images.
• Rated battery endurance is approximately 5.5 hours per NE-4400 battery.
• The system uses a shutterless NUC and AGM’s Image Boost 2.0 imaging algorithm.
• Firmware offers onboard ballistic calculation, picture-in-picture, shot-activated recording, and a Wi‑Fi hotspot.
• Package includes ADM 2120 mount, NE-4400 battery, charger, USB cable, lens cloth, manual, and carrying case.

Compact yet feature-rich, the RattlerV3 LRF 35-640 blends advanced thermal sensitivity and a high-resolution display with integrated ranging and ballistics tools. Its combination of rugged construction, extensive firmware customization, and on-board recording and connectivity makes it well suited for extended field use, observation tasks, and applications that demand reliable thermal imaging and distance data in a portable package.
