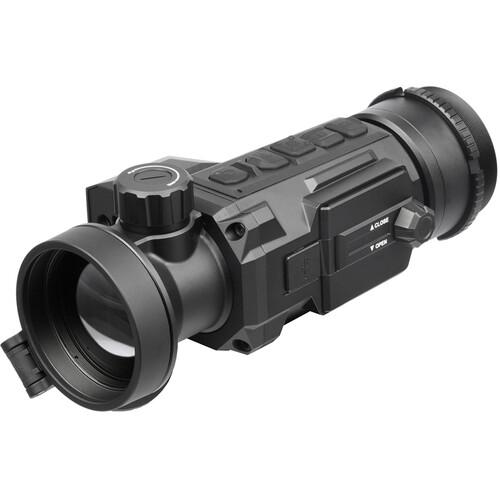

AGM Secutor LRF-C 50-640 Thermal Clip-On 640×512 50mm

The AGM Secutor LRF-C is a compact thermal imaging clip-on that converts day optics into a thermal device while retaining scope function and eye relief. It integrates a built-in laser rangefinder and supports medium-range use by mounting in front of rifle scopes with magnification up to 10×. The unit includes onboard recording and Wi‑Fi streaming for documentation and situational awareness in reduced-visibility conditions.

Key Specifications

• The thermal detector pitch is 12 µm.
• The sensor resolution is 640×512.
• The objective lens diameter is 50 mm.
• The clip-on magnification is 1×.
• The field of view measures 8.80 × 7 degrees.
• The display is a 1024×768 OLED monitor.
• The imaging frame rate is 50 Hz.
• On-board storage uses 16 GB EMMC for video and image capture.
• Battery size is listed as CR123A in attributes while manufacturer text references four replaceable Li‑Ion cells and operation of more than 6 hours.
• Connectivity includes Wi‑Fi for live streaming and file transfer.

Engineered for users who need a straightforward clip-on thermal solution, the Secutor LRF-C combines a fine-pitch detector, integrated rangefinding, and recording features in a compact, mountable package. Its combination of thermal imaging, onboard storage, and wireless connectivity makes it useful for documentation and observation tasks in limited-visibility environments while maintaining compatibility with common daytime optics.
