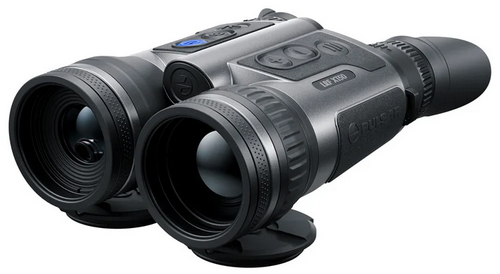

Merger LRF XT50 Thermal Binocular – Main – Sensor 1280?1024 @ 12 µm (NETD <40 mK) – Objective lens 50mm/F1.0 – Magnification x 2-16 – Field of view (HxV) degrees / m@100m 17.5/30.7 – Detection range yards 2515 – Sensor – Type uncooled – Resolution pixels 1280?1024 – Pixel pitch µm 12 – NETD mK <40 – Frame rate Hz 50 – Optics – Objective lens 50mm/F1.0 – Magnification x 2 – 16 – Field of view (HxV) degrees / m @ 100 m 17.5/30.7 – Interpupillary distance adjustment mm 63-74 – Eye relief mm 15 – Type AMOLED – Display – Resolution pixels 1280?960 – Range Performance – Detection range yards 2515 – Laser Rangefinder – Safety class for laser equipment according to IEC 60825-1:2014 1 – Wavelength nm 905 – Max. measuring range yards 1640 – Measurement accuracy m ± 1 – Video Recorder – Video / photo resolution pixel 1280?960 – Video / photo format .mp4 / .jpg – Built-in memory GB 64 – Wi-Fi – Wireless Protocol Wi-Fi – Wireless Standard IEEE 802.11 b/g/n/ac (WPA) – Frequency GHz 2.4 / 5 – Environmental Characteristics – Degree of protection IP code (IEC60529) IP?7 (waterproof) – Operating temperature range °F -13-122 – Connections and Compatibilities – Mount type 1/4 socket – Supported Application Stream Vision 2 – Power Supply – Output voltage V 3.7 – Battery type Dual Li-Ion internal + Pulsar APS3 external – Capacity mAh 3200 (external) + 4000 (internal) – Operating time on battery pack (at t=71°F) h * 6 – External power supply V 5V 9V (USB Type-C Power Delivery) – Weight & Size – Body material Magnesium alloy – Dimensions mm 197x140x72 – Weight lbs 2 (batteries included)
Merger LRF XT50 Thermal Binocular - Main - Sensor 1280?1024 @ 12 µm (NETD <40 mK) - Objective lens 50mm/F1.0 - Magnification x 2-16 - Field of view (HxV) degrees / m@100m 17.5/30.7 - Detection range yards 2515 - Sensor - Type uncooled - Resolution pixels 1280?1024 - Pixel pitch µm 12 - NETD mK <40 - Frame rate Hz 50 - Optics - Objective lens 50mm/F1.0 - Magnification x 2 - 16 - Field of view (HxV) degrees / m @ 100 m 17.5/30.7 - Interpupillary distance adjustment mm 63-74 - Eye relief mm 15 - Type AMOLED - Display - Resolution pixels 1280?960 - Range Performance - Detection range yards 2515 - Laser Rangefinder - Safety class for laser equipment according to IEC 60825-1:2014 1 - Wavelength nm 905 - Max. measuring range yards 1640 - Measurement accuracy m ± 1 - Video Recorder - Video / photo resolution pixel 1280?960 - Video / photo format .mp4 / .jpg - Built-in memory GB 64 - Wi-Fi - Wireless Protocol Wi-Fi - Wireless Standard IEEE 802.11 b/g/n/ac (WPA) - Frequency GHz 2.4 / 5 - Environmental Characteristics - Degree of protection IP code (IEC60529) IP?7 (waterproof) - Operating temperature range °F -13-122 - Connections and Compatibilities - Mount type 1/4 socket - Supported Application Stream Vision 2 - Power Supply - Output voltage V 3.7 - Battery type Dual Li-Ion internal + Pulsar APS3 external - Capacity mAh 3200 (external) + 4000 (internal) - Operating time on battery pack (at t=71°F) h * 6 - External power supply V 5V 9V (USB Type-C Power Delivery) - Weight & Size - Body material Magnesium alloy - Dimensions mm 197x140x72 - Weight lbs 2 (batteries included)
Additional information
| UPC | 840284901989 |
|---|---|
| Manufacturer | Pulsar |
| Manufacturer Part Number | PL77486 |
| Color | Black |
| Eye Relief | 0 |
| Length | 11.9500 |
| Magnification | 2-16x |
| Model | Merger LRF XT50 |
| Power | 2-16X |
| Product Type | 15mm |
| Resolution | 1024, 12 Microns, 50 Hz |
