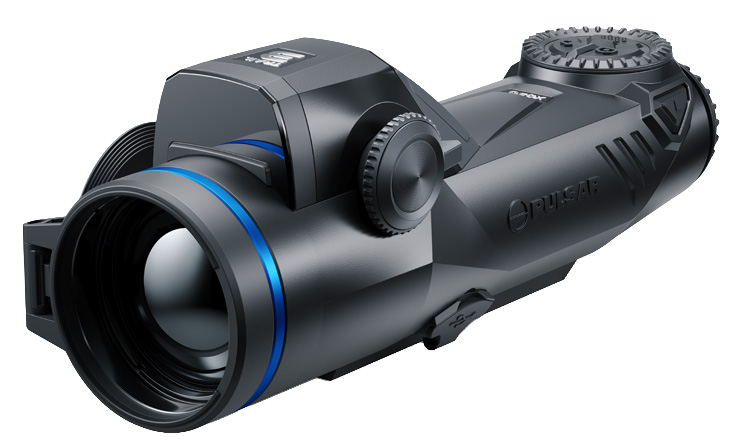

Pulsar Trail 3 LRF XQ50 3.5-14x 50mm Thermal Scope

The Pulsar Trail 3 LRF XQ50 is a compact thermal riflescope designed for extended detection and observation tasks in variable field conditions. It combines a 50 mm objective and a 3.5–14× magnification range with an integrated laser rangefinder and onboard recording to support distance measurement and documentation. Built for reliable operation across a wide temperature range, it incorporates wireless connectivity for streaming and firmware management.

Key Specifications

• The magnification range is 3.5–14× for adaptable framing across mid- to longer-range observation.
• The objective lens is 50 mm (F/1.0) to gather thermal signatures in low-contrast conditions.
• The thermal sensor resolution is 384×288 (17 µm) for detailed thermal imaging.
• The system operates at a 50 Hz frame rate for smooth real-time imaging.
• The integrated laser rangefinder measures up to 1200 m with an accuracy of ±1 m.
• The eyepiece display is an AMOLED 1920×1080 panel for high-resolution viewing and recording.
• Built-in storage is 64 GB to save video and still images onboard.
• The included rechargeable battery pack has a capacity of 6400 mAh and provides approximately 12 h of operation at 22°C.
• The unit is rated IP67 and is specified to operate between −25°C and +50°C.
• The chassis is constructed from magnesium alloy with dimensions of 271 × 86 × 71 mm.

Designed with an integrated laser rangefinder and Stream Vision 2 compatibility, the Trail 3 LRF XQ50 provides practical on-device recording and wireless streaming for documentation and situational awareness. Its robust materials and thermal imaging suite make it a capable tool for disciplined users who need dependable detection and distance information in adverse conditions.
